IG网关读取西门子smart200PLC寄存器类型V、VW 的数据

chenzc
chenzc This guy is lazy,Introduction has not been set

3 People liked this article · 7513 views

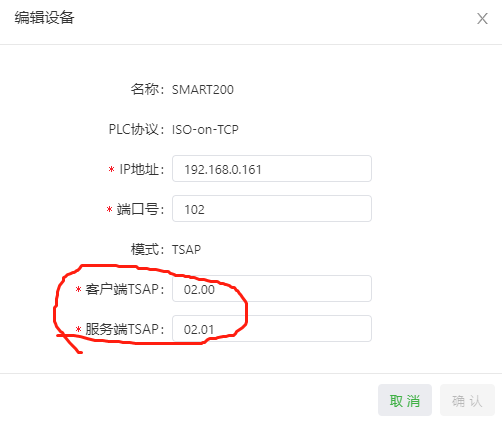

1、添加设备，PLC协议选择ISO-on-TCP，设置IP地址和端口102，模式选择TSAP。客户端TSAP：02.00，服务器TSAP：02.01

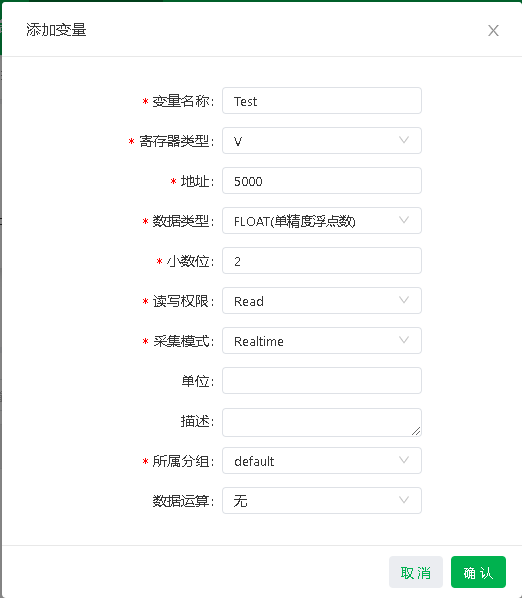

2、添加变量，寄存器类型选择V，填写地址，选择数据类型。

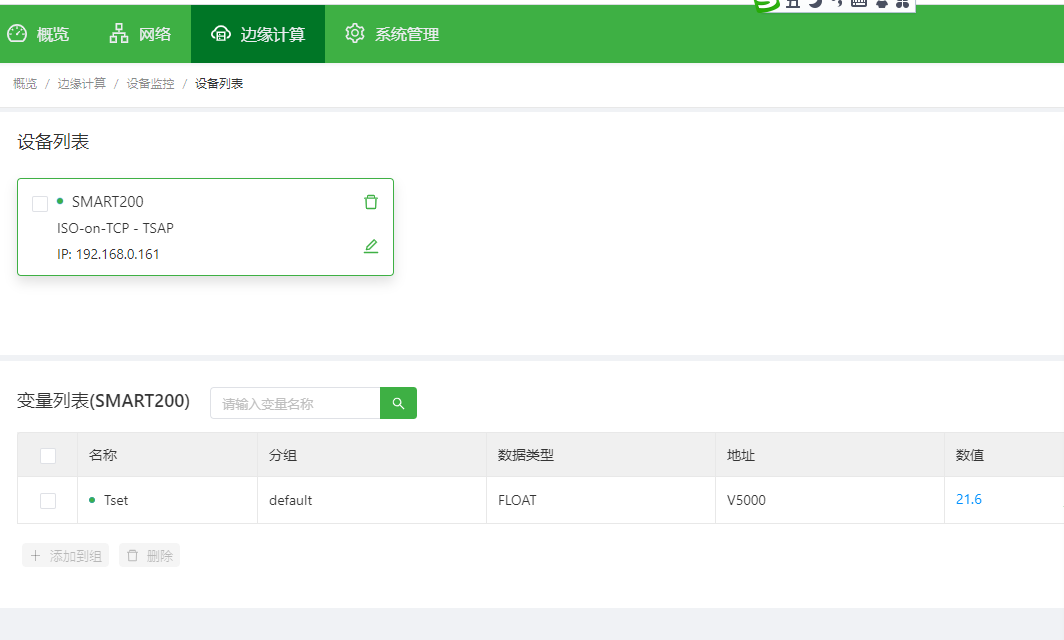

3、成功读取寄存器V5000的数据。



Published on 2021-04-15 10:48

Copy Link Sina Weibo Tencent Space
Scan WeChat
Disclaimers:

This document is written by chenzc Original published on 技术社区 ，The copyright belongs to the author。

Log in,More exciting content waiting for you to find,Contribute wonderful answers,Participate in comment interaction

go Sign in! No accountgoregister

whole 2 Comments

Default sorting
Popular sorting
奇兵
奇兵
2021-05-14 16:29
以前的添加方式里面V=DB1
thumbs-up 0
奇兵
奇兵
2021-05-14 16:28
挺关键的，搭配昆仑通泰的屏幕PE接口如果被占用建议使用这种方式。
