DecieManager 端口代理功能如何使用?

Admin
Admin This guy is lazy,Introduction has not been set

0 People liked this article · 4963 views

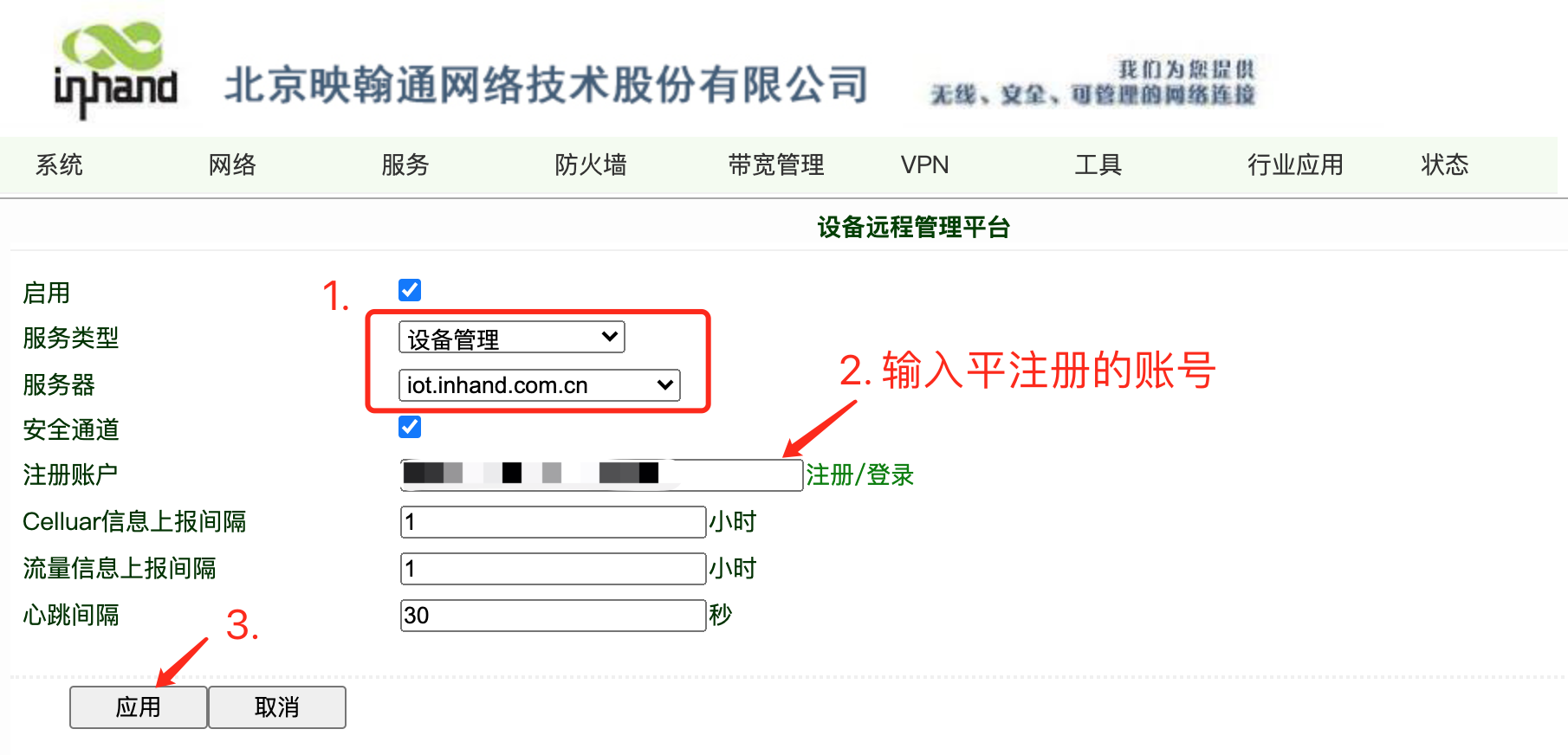

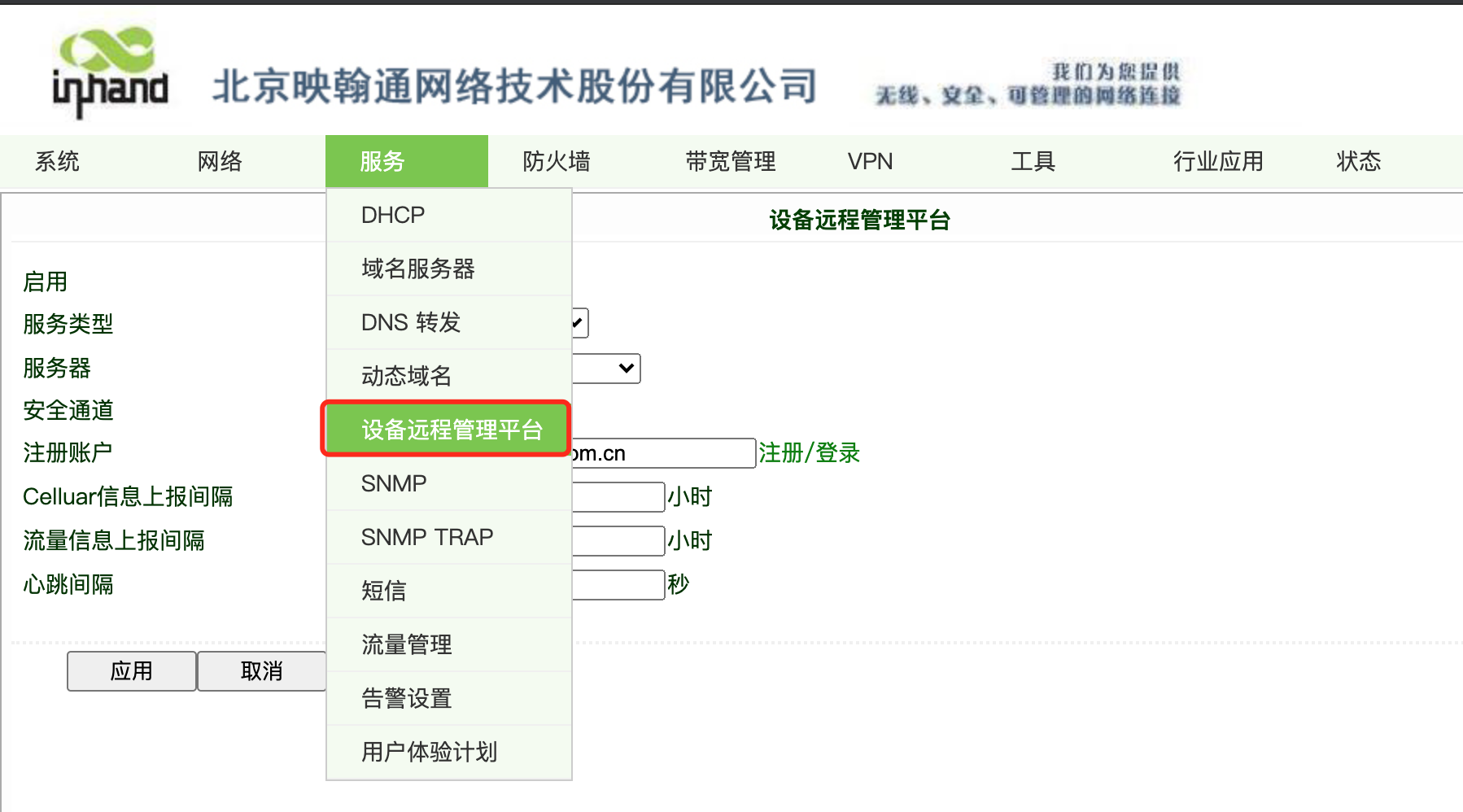

1. 注册账号,将路由器添加到网管平台   https://iot.inhand.com.cn   2. 配置路由器链接平台

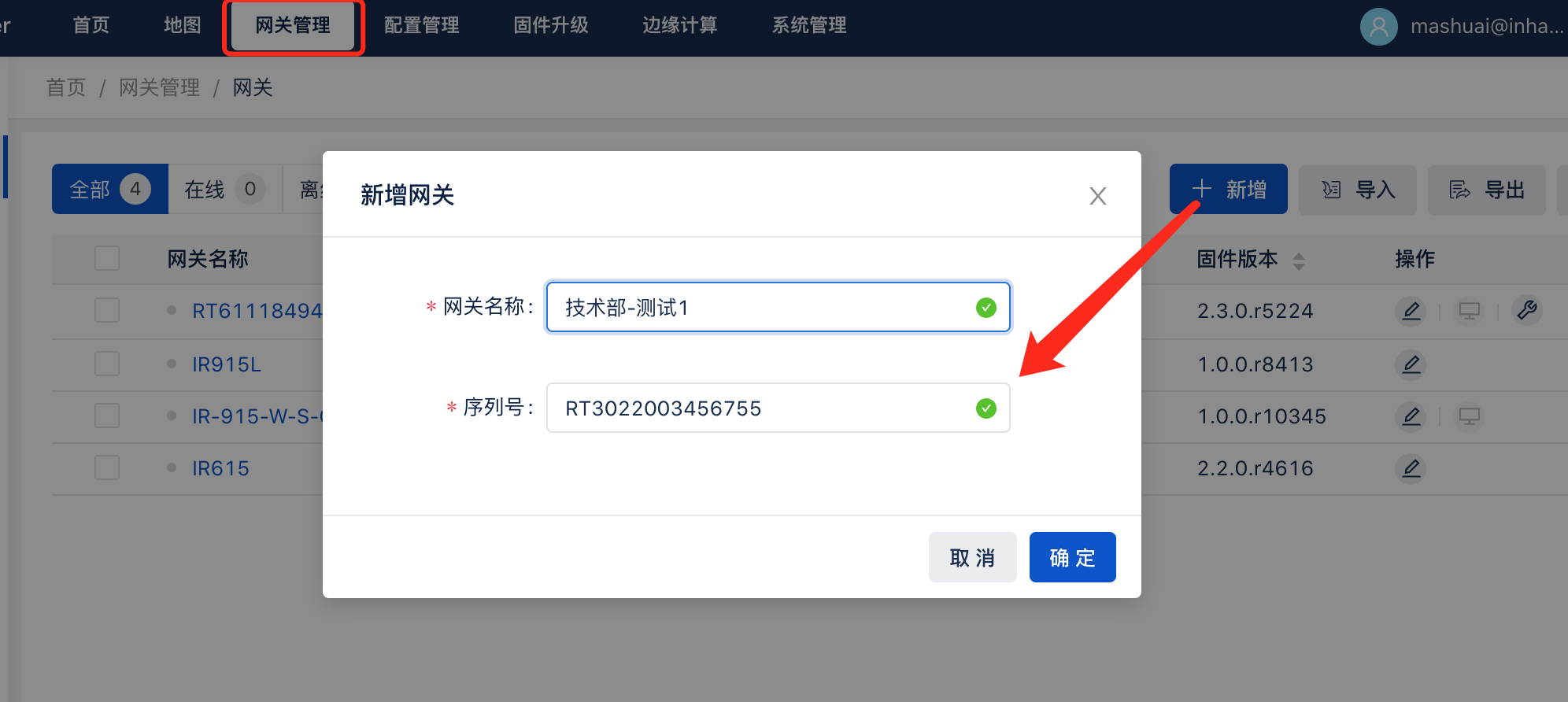

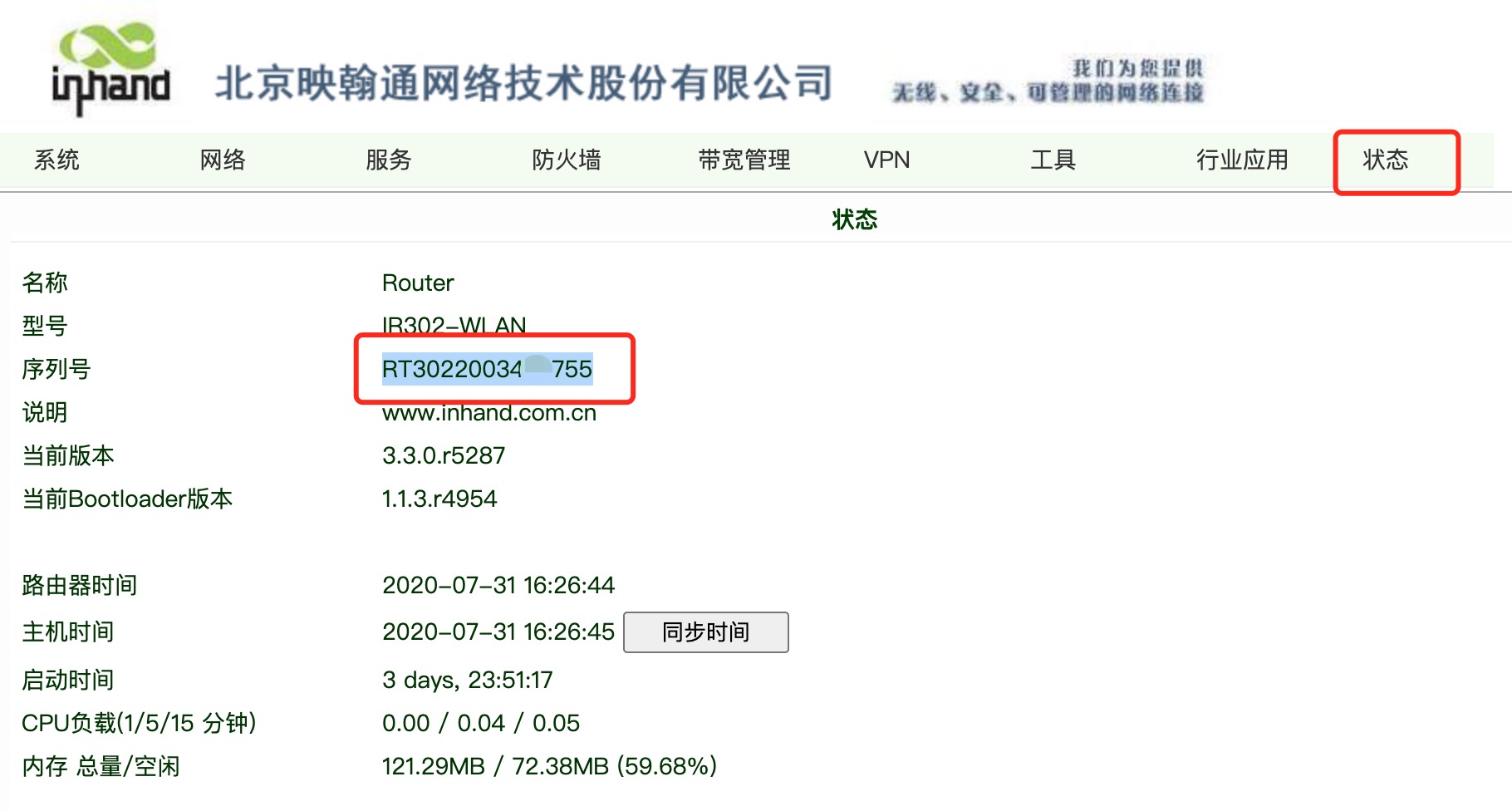

添加路由器到平台

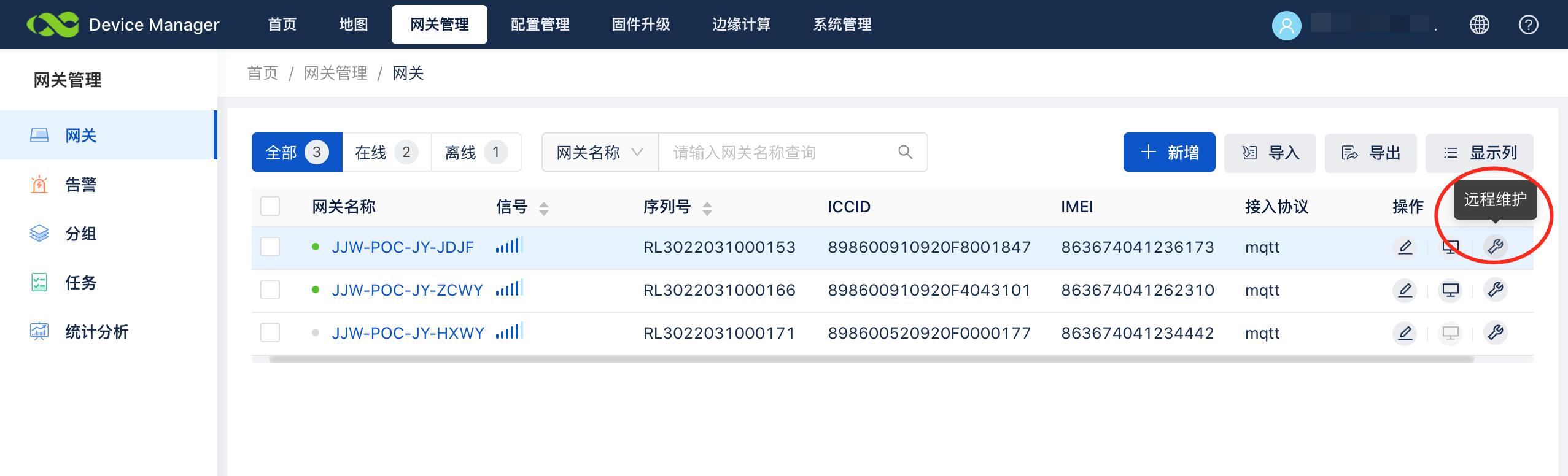

  3. 配置代理   进入网关列表,点击“远程维护”进入配置页面

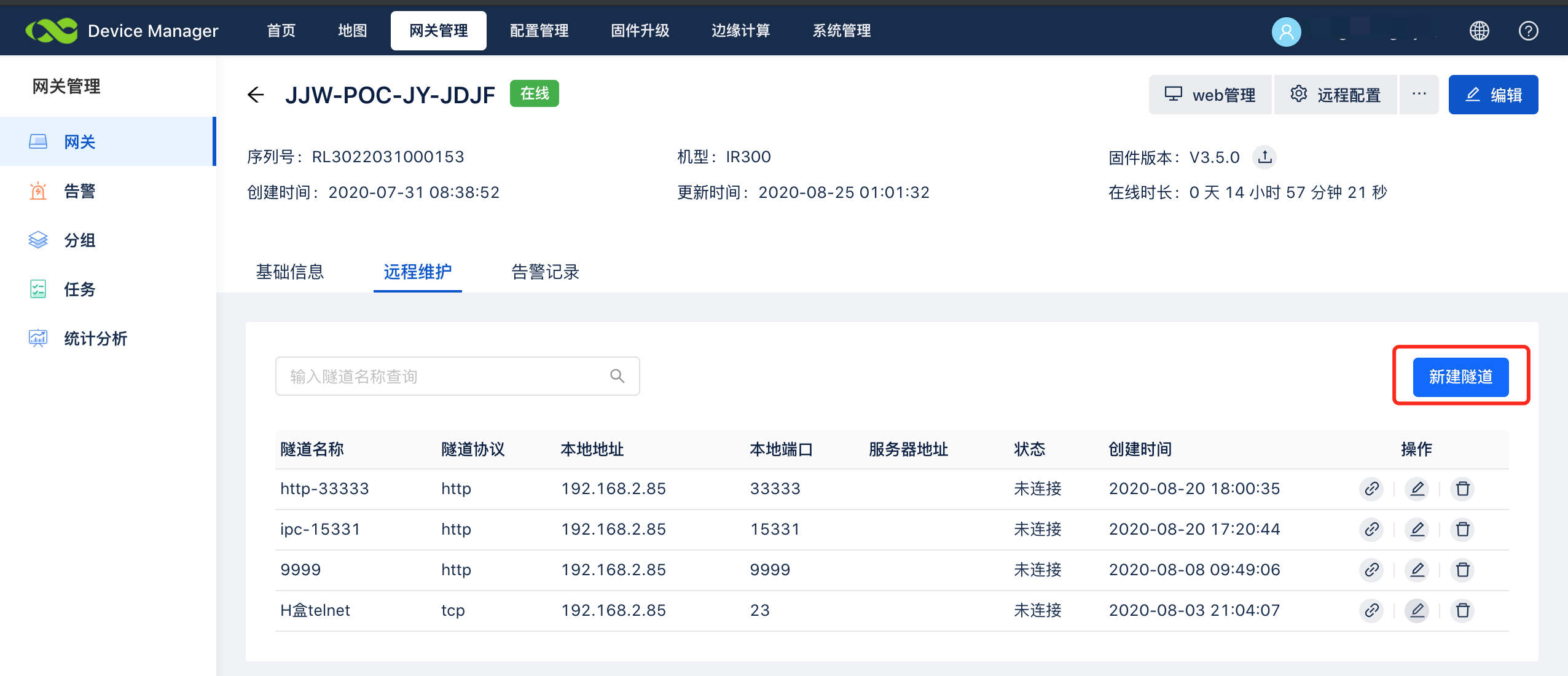

点击“新建隧道”

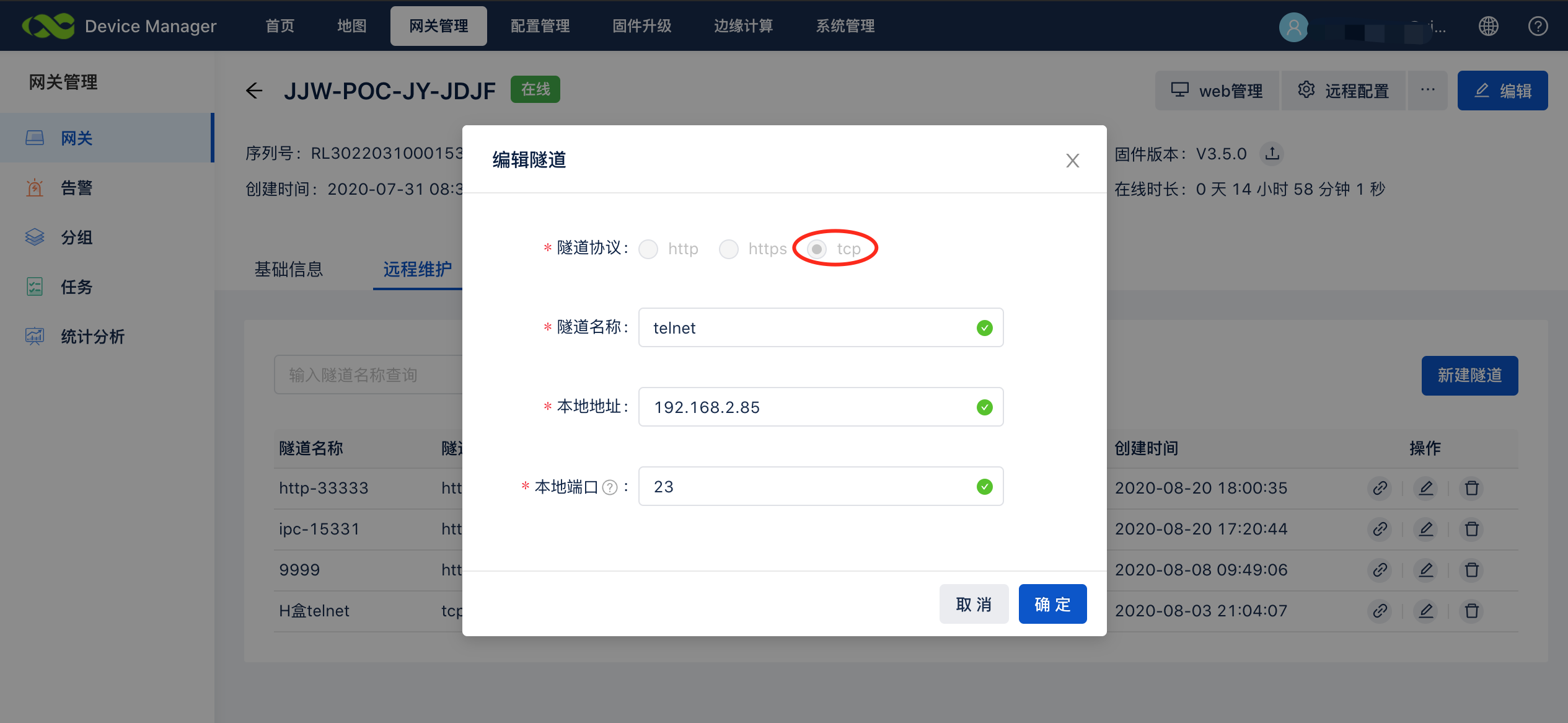

以路由器下联服务器192.168.2.85 的telent端口为例,创建隧道

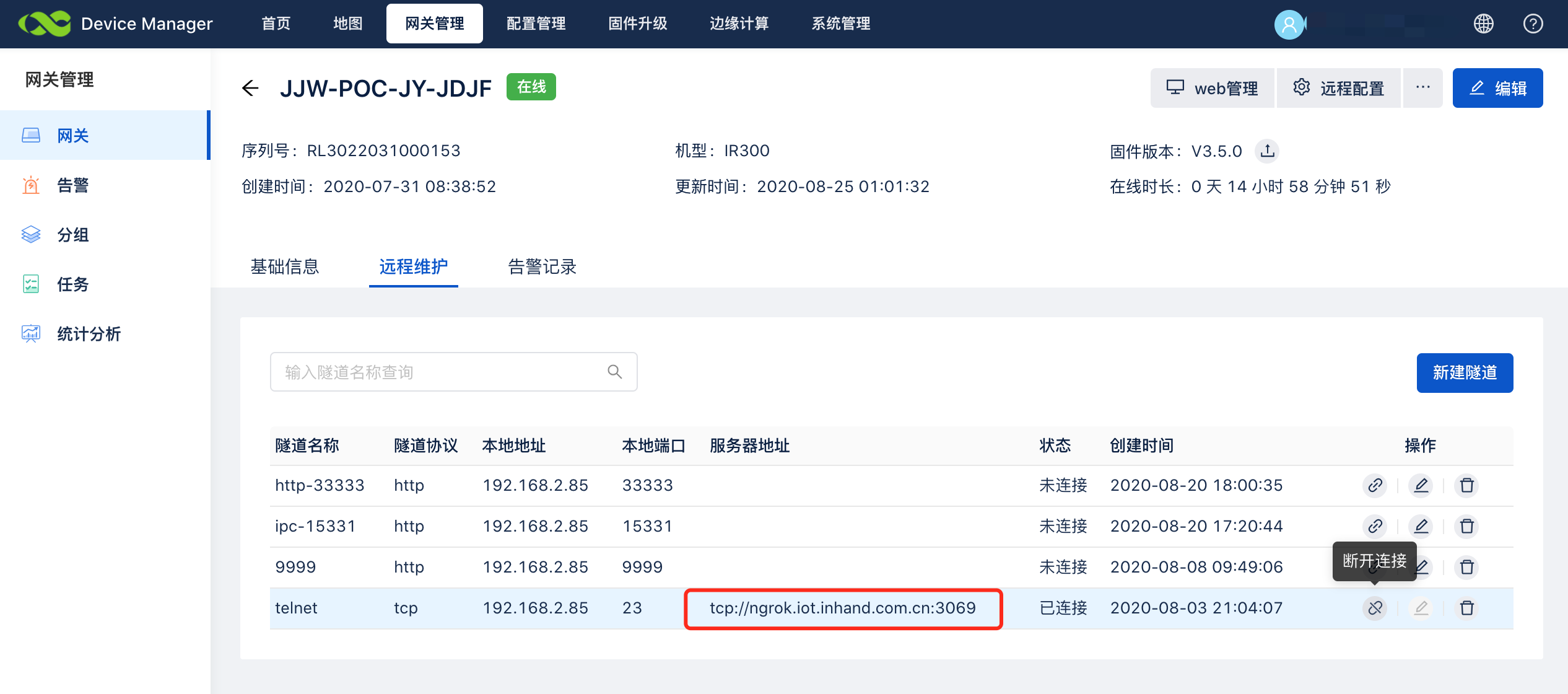

点击链接按钮创建临时链接

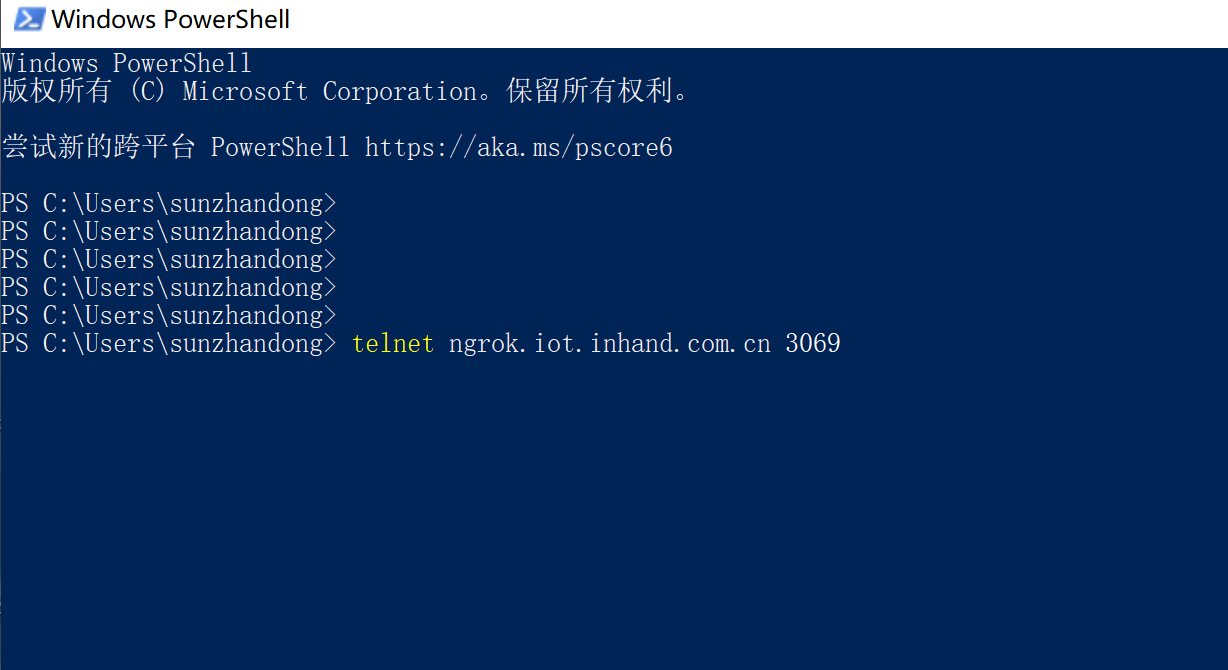

获得链接地址端口号,telnet登录路由器192.168.2.85
